    Automatic 70kw Oem Dry Pet Food Production Line Big Capacity

    Ask Lasest Price
    Brand Name : MT Machinery
    Model Number : MT65/MT70/70C
    Certification : CE
    Price : 800-60000USD
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 15-30sets/Month
    Delivery Time : 5-15 Work days
    • Product Details
    • Company Profile

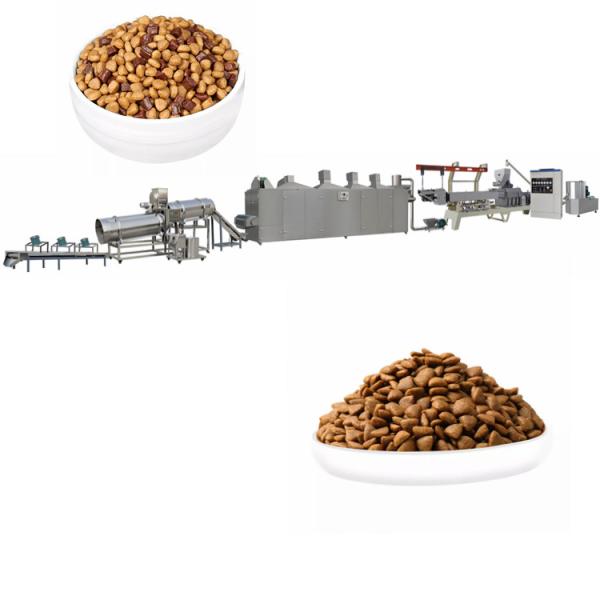

    Automatic 70kw Oem Dry Pet Food Production Line Big Capacity

    Automatic OEM big capacity cat food equipment plant Dry Dog food machine
    New condition animal pellet process plant stainless steel pet feed equipment cat food extruder machine is plant or animal material intended for consumption by cat or other canines.

    The pet food is close to the human beings food in the fine level, the health index and the ingredients, some of them request more highly than human beings. In extruder, the ingredients are cookedunder intense heat and pressure as it moves toward the open end of the extruder where ingredients pass through a shaping die and knife. Cat food is dried in a multi-pass dryer until its moisture content is low enough to make it shelf stable. Cat food may pass through a coating drum where animal fat and vitamins are applied onto cat food.

    Product Description
    NO.
    Name
    Brief introduction
    1
    Raw material
    Corn flour; soya flakes meal;animal bone powder,fish powder; etc.
    2
    Shape
    up to customer's demand
    3
    Processing flow
    Mixing system; Extrusion system; Drying system; Flavoring system; Packing System
    4
    Equipment involved
    Mixer; Screw elevator; Double screw extruder; Air conveyor; Dryer; Flavoring system;Packing machine
    5
    Final products
    Dog feed;Cat feed;Bird feed;Fish feed;etc.
    6
    Machine material
    Stainless steel 201 or as customer’s request
    Product parameters
    Model
    MT-65
    MT-70
    MT-70C
    MT-85
    MT-95
    Voltage customized
    380V/50Hz
    380V/50Hz
    380V/50Hz
    380V/50Hz
    380V/50Hz
    main power
    22kw
    30kw
    45kw
    75kw
    110kw
    Dryer Fuel
    gas
    gas
    gas
    gas
    gas
    Capacity
    100-150kg/h
    120-150kg/h
    150-250kg/h
    300-500kg/h
    800-1000kg/h
    Length
    23m
    26m
    30m
    45m
    55
    The line is working principle 1. Powder mixing machine: Choose different types of powder mixing machine according to the output of the production line. There are mainly three models for your choice. 2. Conveyance machine: use the motor as the power screw conveying to ensure convenient and fast feeding. 3. Extruder machine: Choose different types of MT type puffing host according to the output of the production line. Corn meal, cereal meal, bone meal, meat meal, etc. can be used as raw materials, and the specific product shape The mold can be replaced. 4. Hoist: Feed the feed to the oven. The height of the hoist is determined according to the oven. An air conveyor can also be used. 5. Multi-layer oven: the oven is mostly electric oven, the temperature is between 0-200 degrees and the temperature is adjusted by the control cabinet, the inside is stainless steel double-layer mesh bag, the baking time can be adjusted according to the speed 6. Vibrating screen: Sieve to remove excess scraps. 7. Flavoring line: There are octagonal tube, cylinder, lifting single drum, double drum seasoning line, which is configured according to the output and the nature of the product.

    Double Screw Extruder Machine
    By two co-rotating screws composed by sectional modules for the following functions: forward and backward transport, mixing,de-gassing, cooking and forming.The inside structure is made by painting steel, but all the parts touching with the raw material or products are made by stainless steel;The use of a continuous automatic process provides greater production outputs than offered by traditional systems, with savings in energy and reduced management cost.

    Multi-layer oven
    The oven is mostly electric oven, the temperature is between 0-200 degrees and the temperature is adjusted by the control cabinet,the inside is stainless steel double-layer mesh bag, the baking time can be adjusted according to the speed.It is composed of oven the me, control cabinet all stainless steel.oven, compact structure, cover an area of small, dry area is large, small,small heat.

    Cooling Machine
    Technical Parameter: Power:0.77KW Dimension:6000 x 800 x 1000mm Out of the seasoning machine, surface must have a lot of oil, and the oven keypad for completely faded, 8 m mesh belt to reduce temperature of the material and make the oil content and have attractant is absorbed adequately and can reach the level of direct packaging.

    Seasoning line
    It is used to spray the flavor powder and oil onto snacks evenly.Includes FOUR devices: Coating Drum, Oil Sprayer,Small Hoist and Flavor Sprayer.Stainless steel structure, especially the parts incontacting with the raw material or products;There are octagonal tube , cylinder, lifting single drum, double drum seasoning line, which is configured according to the output and the nature of the product.
    Pet food Raw materials
    RICE FLOUR
    CORN FLOUR
    WHEAT FLOUR
    SOYBEAN MEAL
    ANIMAL OIL
    BONE MEAL
