    Delta ABB Snack Food Production Line Double Screw Extruder

    Ask Lasest Price
    Brand Name : MT
    Model Number : MT 65 70 70C
    Certification : CE
    Price : USD 25000-35000 SET
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1 SET MONTH
    Delivery Time : 30-45 WORK DAYS
    • Product Details
    • Company Profile

    Delta ABB Snack Food Production Line Double Screw Extruder

    2022 Hot Sale Factory Price Corn Puff Snack Food Machine Snack Food Production Line


    Product Description:

    2022 Hot Sale Factory Price Corn Puff Snack Food Machine Snack Food Production Line is a new type of extruding food machine studied and developed by ourselves on the basis of learning from advanced technology in the world so that its technical performance and quality of products both reach to the most advanced in the world.This line will finish

    mixing,extruding,shaping,core-filling,cutting,spraying and producing in one-pass operation automatically.This line features

    lots of types,flexible collocation,extensive applied materials,various products and easy operation.


    Model
    Power Consumption
    Actual Consumption
    Output
    size
    MT65 processing line
    84KW
    59KW
    100-150 kg/h
    25000*1500*2000 mm
    MT70 processing line
    132KW
    92KW
    150-200 kg/h
    30000*1500*2000 mm
    MT70C processing line
    155KW
    105KW
    200-250 kg/h
    35000*1500*3000 mm


    Details Images of snack pellet production line:

    Mixer machine

    Power: 3kw
    Output: 70-100kg/h
    Size: 900*700*1200mm
    Function:To mix the material such as the wheat flour and waster.

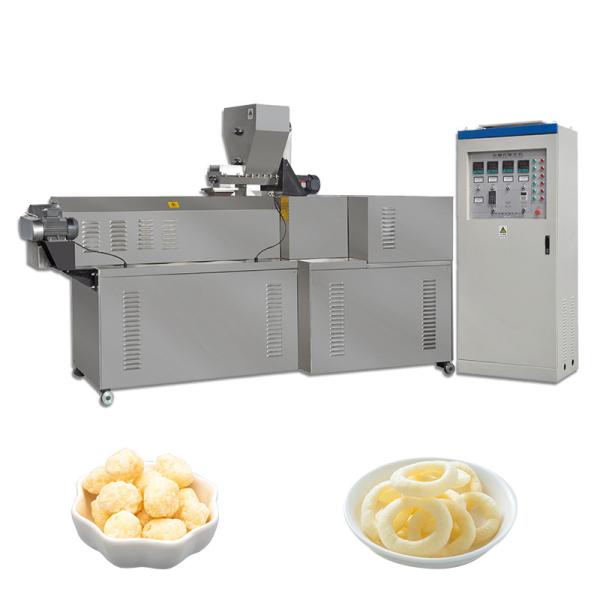

    Double screw extruder machine:

    Technical Parameters:
    Power(KW): 30kw
    Dimension(m): 3×1.1×1.9
    Heating power: 14kw
    Feeding power: 0.75kw
    Cutting power:0.75kw
    Function: Double Screw Extruder serves to gelatinize flours andstarches continuously and automatically. After dosing, the materials are worked by two co-rotating screws composed by sectional modules for the following functions: forward and backward transport, mixing, feeding of additives, injection of liquids , de-gassing, cooking and forming.

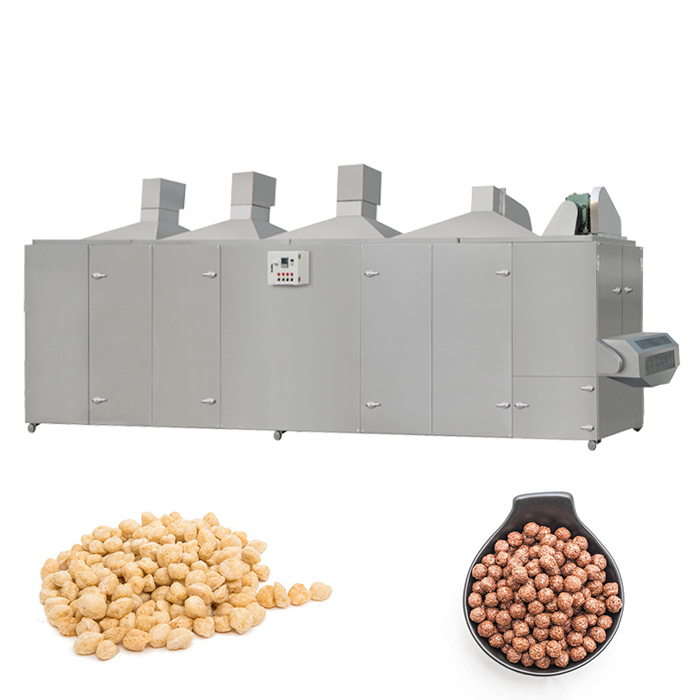

    Dryer Machine

    Structure detail: Stainless steel structure, especially the parts in contacting with the raw material or products; Five layer structure can prolong the drying time and reduce the coverage area; Each layer is made of mesh belt which is made by SUS; Side guards to prevent products from falling off the belt; Various speed inverter drives for five layers; Auto temperature control system with the temperature MAX 160℃; The body is well sealed to prevent any heating leakage, and thus reduce the savings in energy; Three kinds of power can be choices: Electric, gas or oil.



    Seasoning machine:

    Drum Driving Power:1.1kw
    Drum Size:φ700 x3000mm
    Power:0.75kw
    Flavoring System is used to spray the flavor powder and oil onto snacks evenly. Includes FOUR devices: Coating Drum, Oil Sprayer,Small Hoist and powder hopper. Stainless steel structure, especially the parts in contacting with the raw material or products; Rotary speed can be adjustable; Rotary direction can be adjustable (clockwise or anti-clockwise); The tank is equipped with heating machine for heat the oil and other liquid. The heating temperature can be adjustable;

    Company Profile of snack pellet production line:

    Our company(MT Machinery Co., Ltd.'s )has good experience of the industry development. We have well-experienced managers,outstanding engineers as well as well-trained technical workers. By constant technical exchange with well-known firms of the same line in the world and also by introduction of advanced technique and experience into our company, we have established a strong technical guarantee system. Our company is a manufacturer of puffed extruder and food machinery. Our products are sold very well throughout China and are also introduced to Southeast Asia, East Europe, Africa and other regions.Our market share is increasing each year.


    Packing & Delivery of snack pellet production line:


    ♥Wooden or metal case according to specific size of each equipment, we twine thick plastic coating for each machine.
    ♥Tight the equipment in the truck without space to ensure no rubbing during the transportation.
    ♥We can adjust according to the customer’s demand.


    Certification of snack pellet production line:

    We can provide the electronic edition certificates for Jinan MT Machinery extruded Customizable Corn Puffing Ball Snack Food Twin Screw Extruder Snack Food Production Line if asked, or you can see the original documents in our factory. We can ensure the truth of our certificates.


    Our services of snack pellet production line:


    1. Our engineers available to service machinery oversaes.
    2. Help you choose the most suitable twin screw extruder food snacks machine.
    3. Customize the puffed corn extruder according to your request.
    4. Our factory is equipped with the most advance machineries available. You can rely on us as the machinery specialist. We provide custom machinery and engineering services to cater you need.

    FAQ of snack pellet production line:
    Q1:Are you a trading company or a manufactory?
    A1:We are a manufactory,can give u best service .

    Q2:What’s your guarantee or the warranty of the quality if we buy your machines?
    A2:We offer you high quality machines with 1 years guarantee . we will give u spare part free in 1years

    Q3:When can I get my machine after I paid?
    A3:We will deliver the machines on time as the date we agreed both side.

    Q4:How can I install my machine when it arrives?
    A4:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians
