    Big Capacity Corn Flakes Production Line / Cereal Corn Flakes Machine Extruder

    Ask Lasest Price
    Brand Name : MT
    Model Number : MT-65/70/70C/75
    Certification : CE
    Price : USD 10000-50000
    Payment Terms : L/C, D/A, D/P, T/T, MoneyGram, Western Union
    Supply Ability : 10sets/month
    Delivery Time : 10-50days
    • Product Details
    • Company Profile

    Big Capacity Corn Flakes Production Line / Cereal Corn Flakes Machine Extruder

    Big Capacity Corn flakes Production Line/breakfast Cereal Corn Flakes Extruder Machine

    Product Description


    Description: Big Capacity Corn flakes Production Line/breakfast Cereal Corn Flakes Extruder Machine is developed and manufactured on the basis of the international advanced extrusion technology, which is named corn flakes breakfast cereal processing line. Its technology performance and quality can reach international advanced level. Big Capacity Corn flakes Production Line/breakfast Cereal Corn Flakes Extruder Machine is consist of mixing,boiling,pressing,drying and inflating, which can be finished in one time, the level of its automation is very high.


    Specification


    Model

    Installed power

    Real power

    Output

    Dimension

    MT-65

    84kw

    59kw

    120-150kg/h

    21000x1200x2200mm

    MT-70

    132kw

    92kw

    200-250kg/h

    23000x1500x2200mm

    MT-85

    239KW

    167KW

    300-400kg/h

    28000*3500*4300mm

    MT-75

    186KW

    140KW

    400-500kg/h

    24000*1500*2800mm


    Advantage of Big Capacity Corn flakes Production Line/breakfast Cereal Corn Flakes Extruder Machine:

    1. The main extruder adopts frequency speed controlling with high automation.

    2. The screws are made of the stainless steel and special craft, which has the advantage of durable usage, high pressure,and longer life.

    3. The forced lubrication system ,which can guarantee the equipment transmission life longer.

    4. Auto-temperature control system and self-cleaning ,which makes it more convenient.

    5. It has the widest range of applications and can produce different products with different equipment and models.


    Flow chart :

    Flour Mixing – Extrusion – Drying – Sugar Coating – Drying – Packing

    Our company has rich experiences in this process line. We are able to supply turnkey project including grinding system for raw material, production machines for cereal, packing system for final products, even other lab testing equipments, etc.


    Mixer--Single screw extruder--Dryer machine

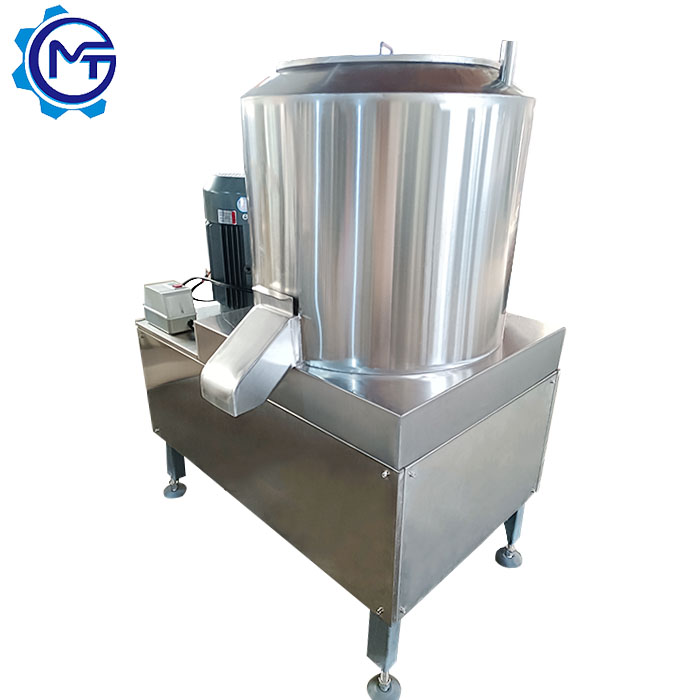

    Flour Mixer

    Technical Parameter: Power: 4kw
    Capacity: 20-30kg/tie
    Dimension: 1050*750*1300mm

    Function: This machine is used to mix the raw material.

    Twin screw extruder
    Function:
    To extrude the raw materials and make them to the required shape and size of the corn snacks food pellets by mould
    Material:
    stainless steel, carbon steel
    Motor:
    22kw, 30kw, 45kw etc
    Capacity:
    100kg/h to 500kg/h


    Big Capacity Corn Flakes Production Line / Cereal Corn Flakes Machine Extruder

    Dryer machine

    Voltage : 380V, 50Hz
    Dimension :10000X1300X2600mm

    The oven is used to dry the products. The moister in the food which come out of the extruder is about 30-35%. With the dry of the dryer, the moister can get down below 16%and this is easy to be storage for long time.

    Product Details

    Sample Show

    It always service as breakfast cereal mixed with milk of coffee. But it can also be a kind of leisure snacks. This process line can also make other shapes of cereals such as rings, balls, chocos, curls etc.

    Company Profile

    Our company(MT Machinery Co., Ltd.'s )has good experience of the industry development. We have
    well-experienced managers,outstanding engineers as well as well-trained technical workers. By constant technical exchange with well-known firms of the same line in the world and also by introduction of advanced technique and experience into our company, we have established a strong technical guarantee system. Our company is a manufacturer of puffed extruder and food machinery.
    Our products are sold very well throughout China and are also introduced to Southeast Asia, East Europe, Africa and other regions.Our market share is increasing each year.
    .

    Packing & Delivery

    Your machines are always wrappd by film compeletly and safely and then packed in strong fumugation-free case or 20'/40' for delivery.We take good care of each machine for you!

    Credential

    We can provide the electronic edition certificates for Extruded Food Corn Flakes Equipment Production Line if asked, or you can see the original documents in our factory. We can ensure the truth of our certificates.

    Services & Customer


    *Training how to install the machine, training how to use the machine

    *Engineers available to service machinery overseas


    Our Team

    Our company has many years of foreign trade experience, our team has a very rich experience.We are a professional team, our members have many years of mechanical professional and technical background. We are a young team, our average age is only 30 years old, full of vitality and innovative spirit. We are a dedicated team, we firmly believe that quality comes from the trust of customers.

    FAQ

    1. Are you trading company or manufacturer
    We are professional manufacturer with over 10 years experience, 2000 square meters factory, and more than 50 personnel.

    2. Do you have CE certification?
    Yes we have got CE, SGS, BV standard and 6 patents in past years.And also have own development centre, plz don't worry about the machines quality.
    3. How could I get my machine and how to put it? How about workers?
    Usually, our price is FOB Qindao. We will trans the machines to the Qingdao port. Then could arrange the shipment. We have experience development engineer team will help with drawing layout for your factory requirement. Also experienced engineers will come and help with your machines istollation and trainning workers.
