Automatic Bugles Doritos Production Line 100 - 200kg/H

    Buy cheap Automatic Bugles Doritos Production Line 100 - 200kg/H from wholesalers

    Buy cheap Automatic Bugles Doritos Production Line 100 - 200kg/H from wholesalers
    • Buy cheap Automatic Bugles Doritos Production Line 100 - 200kg/H from wholesalers
    • Buy cheap Automatic Bugles Doritos Production Line 100 - 200kg/H from wholesalers
    • Buy cheap Automatic Bugles Doritos Production Line 100 - 200kg/H from wholesalers
    • Buy cheap Automatic Bugles Doritos Production Line 100 - 200kg/H from wholesalers
    • Buy cheap Automatic Bugles Doritos Production Line 100 - 200kg/H from wholesalers

    Automatic Bugles Doritos Production Line 100 - 200kg/H

    Ask Lasest Price
    Brand Name : MT
    Model Number : MT90
    Certification : CE ISO SAS
    Price : USD 20000
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 10 SET
    • Product Details
    • Company Profile

    Automatic Bugles Doritos Production Line 100 - 200kg/H

    automatic doritos/bugles maker making machinery doritos production line for sale
    Fried snacks production line is a new technology that replaces the traditional production by twin-screw extrusion technology. The production line including mixing materials, Extruding and expanding, Forming in one, no need boiler, and the production process is simplified, efficient, environmentally friendly and low-carbon. Then forms a kind of leisure food after extruding,slaking,forming, drying, frying and flavoring. The shape can be changed by changing the mould and the forming machine and the cutting machine, such as strips, waved square sheets, diamond sheets, pillows, and triangles. The Crispy Rice, Salad Chips, and Bugles chips are all varied, and the taste is crisp and not greasy.
    1.Flour Mixer--2.Screw Conveyer--3.Double-screw Extruder--4.Pulling and Cutting machine--5.Hoister--6.Separate Drum--7.Vibrate Feeder--8.Continuous Fryer--9.Vibrate De-oil Machine--10.Flavoring Line
    Automatic Bugles Doritos Production Line 100 - 200kg/H
    Model
    Installed Power
    Power Consumption
    Output
    Size
    MT70
    160KW
    120kw
    150-200KG/H
    41000*1500*2200mm
    MT85
    190KW
    140kw
    300-400KG/H
    43000*1500*3200mm
    MT75
    210kw
    150kw
    300-500kg/h
    45000*1500*3500mm
    Product Details
    Automatic Bugles Doritos Production Line 100 - 200kg/H
    Mixer flour
    Function:Used for mixing raw materials Make water and powder raw materials, additives, etc. stir evenly.Technical Parameter:
    Power: 4kw 7.5kw 15kw Capacity: 20-30kg/time 70-80kg/time 170-180kg/time
    Dimension: 1000x900x1300mm 1300*1200*1500mm
    1500*1400*1600mm
    Voltage: 380V 50HZ Three Phase Standard Stainless steel is: 201 S.S. 304 S.S.
    Double-screw extruder
    Twin-screw main engine structure: feeding hopper, control cabinet main motor, feeding motor, oil pump, feeding frequency conversion, spindle frequency conversion, reducer, distribution box, shelf, cable plate, screw, barrel, heating ring, flange, Die Head body, mold, etc.
    Screw material: 38 screw molybdenum aluminum
    Cylinder material: 45# steel
    Shelf: carbon steel
    Outer sealing plate: stainless steel 201 or 304
    Main motor: 22kw, 30kw, 45kw, etc.
    Screw length: 1050MM, 1520MM, 1699MM
    Automatic Bugles Doritos Production Line 100 - 200kg/H

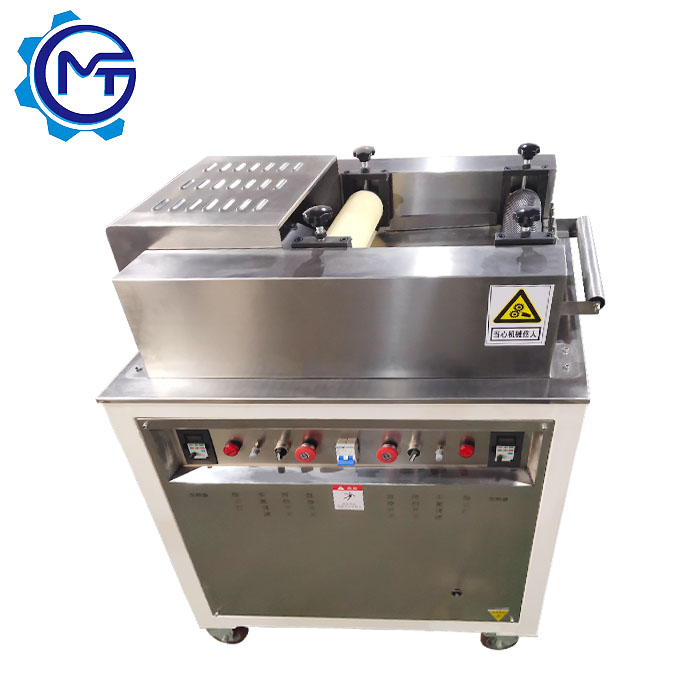

    Cuting machine
    It’s former machine to do to different shape, you can change the shape by changing the roller, usually the shape is duck,
    Christmas tree, moon, wonderful crisp corner, etc., can be made capacity:according to the extruder Power: 1.47kw

    Dimension:2500X600X1100mm
    Automatic Bugles Doritos Production Line 100 - 200kg/H
    Automatic Bugles Doritos Production Line 100 - 200kg/H
    Fryer machine
    Function:It frying different type snack
    1.Total power:84kw
    2. frying temperature:0~200℃
    3. capacit:150~250kg/h
    4. size:3500×1550×3500 mm
    5. with 600MM stainless steel belt,big capacity oil store4.The import have roller to feeding,it can
    uniformly feeding
    6. It can automatic up and down the temperature and belt speed can be adjust
    Flavoring line
    The equipment design of the production line is reasonable, the degree of automation is high, the parameter control is accurate and the operation is simple. According to the needs of production and investment, we can configure full-automatic continuous
    production line and semi-automatic continuous production line. This production line is independently developed and designed by our
    company, and can also process

    Automatic Bugles Doritos Production Line 100 - 200kg/H

    roducts show:

    It is easy to operate and has high yield. It can be sliced, cut and shredded separately. The thickness and thickness can be adjusted freely. The finished product is smooth and uniform without breakage.It can also be made into fried potato chips and other
    different shapes.
    Automatic Bugles Doritos Production Line 100 - 200kg/H
    Company Profile
    Jinan MT machinery & equipment co., LTD is located in the capital of shandong province, the beautiful quancheng— jinan. It is one specialized is engaged in the twin-screw and single screw food expanding machinery enterprises, company with research and development, production, sales of all kinds of machinery and complete sets of equipment for the main business, my company brings together industry expert team work for ten years, not only in the best extrusion technology research, more efforts to continuously explore in terms of food technology, so that the customer production to the market
    leading food. With high quality machines and perfect technical service and good reputation won the trust and support from a large number of buyers at home and abroad.
    Our Factory
    Automatic Bugles Doritos Production Line 100 - 200kg/H
    Our Teams
    Automatic Bugles Doritos Production Line 100 - 200kg/H
    Certificate
    Automatic Bugles Doritos Production Line 100 - 200kg/H
    We can support the electronic edition certificates for export if you need, or you can see the original documents in our factory. We can ensure the truth form our government.
    SIMILAR PRODUCTS
    Automatic Bugles Doritos Production Line 100 - 200kg/H
    Our Services & Strength
    Automatic Bugles Doritos Production Line 100 - 200kg/H
    1. Free consultation service before, during, and after sales;
    2. Free project planning and design services;
    3. Free debugging of equipment until everything is functional;
    4. Free long distance shipping management from seller's factory to named place by buyer;
    5. Free maintenance and operating training personally;
    6. Free new production techniques and formulas;
    7. Provide 1 year complete warranty and life-time maintenance service;.
    Packing & Delivery
    Automatic Bugles Doritos Production Line 100 - 200kg/H
    1. Inside package is plastic film, outside is wooden or plywood case
    (based on the customers' need for fried instant noodlemachine).
    2. Only plastic film nude packing with wooden pallet.
    3.Shipping, train, express or upon clients' demands.
    FAQ
    1. Are you commercial full-automatic sala rice crust cutting shape bugle chips machine trader?
    A: Certainly we are manufacturer. Welcome to visit us to check it!
    2. What’s the raw material of commercial full-automatic sala rice crust cutting shape bugle chips machine
    A: wheatflour. We will give you the best suggestion according to your selected machine and formula.
    3. What’s the material of your commercial full-automatic sala rice crust cutting shape bugle chips machine
    A: All the parts in touch with the food are all food grade stainless steel expect some conveyor with PVC.
    4. Do you supply commercial full-automatic sala rice crust cutting shape bugle chips machine
    A: Yes, we supply free basic formula to buyers.we also can introduce professional receipt team

    5. What kind of fuels we can choose during the production?
    A: You can choose gas, diesel, electricity, steam as fuels, but please tell us when you ask for quotation.

    6. How much area the whole production line needs?
    A: The best way is telling us your workshop area, then we will draw a draft for you to ensure the rational use of your space.

    7. If the power supply is not 3ph 380V 50HZ, could you offer the suitable machine?
    A: Yes, we can offer the suitable machine according to your power supply, for example 3ph 380V 60HZ, 3ph 415V 60 HZ, 3ph 220V 60HZ
    and so on.

    8. Do you supply packing machine?
    A: We have long-term cooperation packing machine supplier, we will help to contact them also give best price .
